Product Introduction

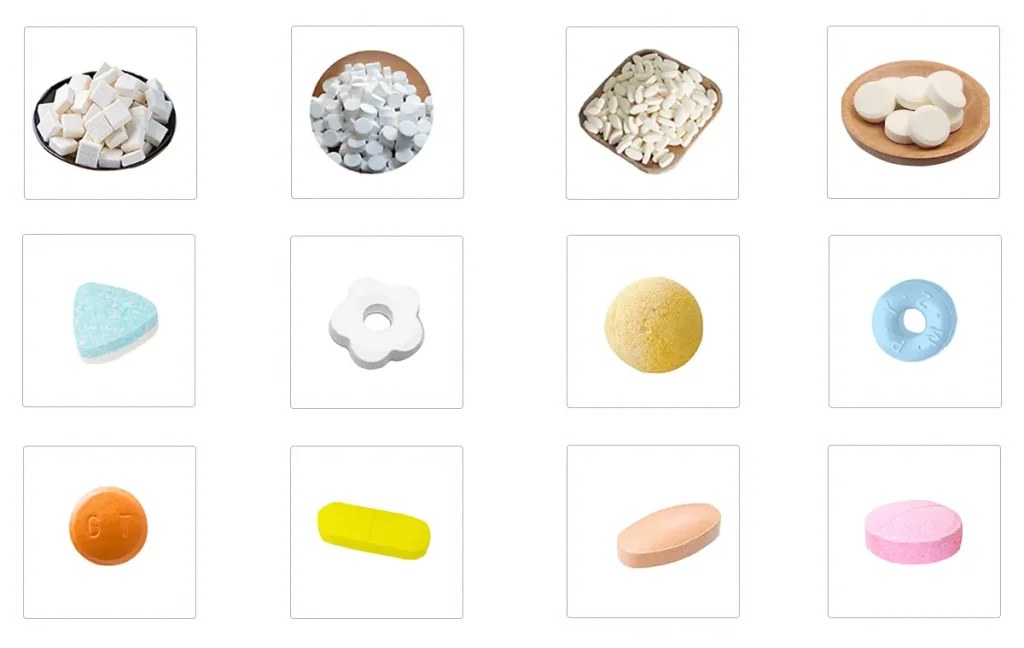

The THDP-3 is a compact, lightweight electric tablet press that can also be operated manually. It is ideal for lab trials or small-scale production, capable of pressing various granular materials into round or custom-shaped tablets. The machine features adjustable filling depth and tablet thickness.
Technical Parameters
• Max. Pressure: 30 kN
• Max. Tablet Diameter: 15 mm
• Max. Depth of Fill: 12 mm
• Max. Tablet Thickness: 6 mm
• Production Capacity: ~4000 pcs/h
• Motor Power: 0.75 kW
• Dimensions: 450 x 300 x 550 mm
• Net Weight: 42 kg
Operating Adjustments
- Punch Die Installation:
For round punches: Insert the lower punch, tighten the screw, then insert the upper punch and secure it. Finally, adjust the middle die plate.
For flat punches: Insert the upper punch, adjust for tablet thickness, and secure. - Feeding Rate Adjustment: Turn the feeding adjustment wheel to control material flow.
- Tablet Rigidity Adjustment: Adjust the upper punch core to control tablet hardness.
Maintenance
• Rotate the wheel manually to check rotation flexibility.
• Regularly lubricate parts and refill oil as needed.
• After production, clean residual powder and apply anti-corrosive grease during long downtimes.
• Die maintenance: Clean and store in a protective box to prevent rust and damage.
Precautions
• Monitor tablet quality to prevent machine damage.
• Avoid using wet materials.
• Do not touch the machine during failures to prevent injury.
• Ensure proper oil refilling to prevent contamination.
• Confirm the correct rotation direction when powering on.
